Astm A269 Tp316l Astm A249 Stainless Steel Boiler Tube

Name: Astm A269 Tp316l Astm A249 Stainless Steel Boiler Tube
Brand: Y & G
Price: 1 USD

Quality Astm A269 Tp316l Astm A249 Stainless Steel Boiler Tube wholesale

Brand Name : Y & G

MOQ : Negotiation

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 8000MT/Month

Delivery Time : 25-35 days

Packaging Details : Exporting package/wooden box / per customers’ requirement

Model Number : ASTM A249, ASTM A269

Standard : ASTM, AiSi, DIN, EN, GB, JIS, ASTM A249/269/ASME SA249

Type : Welded, astm a249 boiler piping

Grade : 304,304L,316,316L Stainless Steel

Tube Treatment : Bright annealing or BA+pickling

Application : boiler, tube heat exchanger

OD Tolerance : +/-0.10/+-0.15/+/-20/+/-0.25/+/-0.31mm

Thickness Tolerance : +/-10%

Contact Now

astm a269 tp316l astm a249 small diameter stainless steel boiler pipe and tube

Supply Ability

Supply Ability:: 100 Ton/Tons per Month

Packaging & Delivery

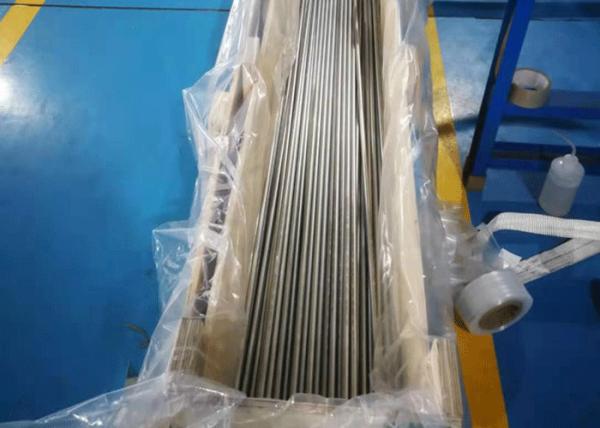

Packaging Details: astm a269 tp316l astm a249 small size stainless steel pipe boiler tube piping
Packing Ways:
1. each tube is packed with pipe end caps and plastic bag individually, then packed into woven belt or wooden box.
2. bundle packing.
3. as customer's requirement.

Port

Shenzhen, Guangzhou, Foshan, Shanghai.

Lead Time :

Quantity(Meters)	1 - 3000	>3000
Est. Time(days)	30	To be negotiated

Our heat exchanger tube in stainless steels are suitable for all types of heat exchangers for conveying all types of gases and liquid with extreme low and high temperature requirements, such as sea water coolers, condensers, evaporators, heaters and reheaters.
They are used for heating, re-heating or cooling of gases, air or fluids in an extensive range of industries like chemical processing, aerospace and nuclear power generation, hydro carbon processing and oil refining.
Our heat exchanger tubes are appreciated for the feature such as dimensional accuracy, corrosion resistance, easy installation and smooth finishing.

A789 / A789M Permissible Variations in Dimensions
Group	Size, Outside Diameter, in. [mm]	Permissible Variations in Outside Diameter, in. [mm]	Average Wall Permissible Variations in Wall Thickness, %	Minimum Wall Permissible Variations in Wall Thickness, %		Permissible Variations in Cut Length,in. [mm]		Thin Walled Tubes
Group	Size, Outside Diameter, in. [mm]	Permissible Variations in Outside Diameter, in. [mm]		Over	Under	Over	Under	Thin Walled Tubes
1	up to 1/2 [12.7], excl	± 0.005 [0.13]	± 15	30	0	1/8 [3]	0	...
2	1/2 to 1 1/2 [12.7 to 38.1], excl	± 0.005 [0.13]	± 10	20	0	1/8 [3]	0	less than 0.065 in. [1.6 mm] specified
3	1 1/2 to 3 1/2 [38.1 to 88.9], excl	± 0.010 [0.25]	± 10	20	0	3/16 [5]	0	less than 0.095 in. [2.4 mm] specified
4	3 1/2 to 5 1/2 [88.9 to 139.7], excl	± 0.015 [0.38]	± 10	20	0	3/16 [5]	0	less than 0.150 in. [3.8 mm] specified
5	5 1/2 to 8 [139.7 to 203.2], incl	± 0.030 [0.76]	± 10	20	0	3/16 [5]	0	less than 0.150 in. [3.8 mm] specified

	HG 20537.2				ASTM A249 (A1016)		GB / T 24593
Outside Diameter (mm)	Ⅰ		Ⅱ		< 25.4	± 0.10	≤ 25	± 0.10
	<25	± 0.10	>10~30	± 0.20	≥25.4~<38.1	± 0.15	>25~40	± 0.15
	≥25~38	± 0.15	>30~50	± 0.30	≥38.1~<50.8	± 0.20	>40~50	± 0.20
	>35~51	± 0.20	>50	± 0.8%	≥50.8~<63.5	± 0.25	>50~65	± 0.25
	>51~63	± 0.25			>63.5~<76.2	± 0.31	>65~75	± 0.30
	>63~76	± 0.30					>75~100	± 0.38
Thickness (mm)	± 10%S				± 10%S		± 10%S
Length (mm)	+5 -0				D<50.8	+3 -0	+5 -0
					D ≥ 50.8	+5 -0
Stainless Steel Mechanical Properties
Grade		Tensile Strength		Yide Strength		Elogation	Hardness	Soluction Annealing
		kgf/mm²(N/mm²)		kgf/mm²(N/mm²)		%	HRB(HV)	℃
ASTM	TP 304	≥53 (515)		≥21 (205)		≥35	≤90 (200)	1040℃-1150℃ Water Quenching
	TP 304L	≥50 (485)		≥17 (170)
	TP 316	≥53 (515)		≥21 (205)
	TP 316l	≥50 (485)		≥17 (170)
JIS	SUS 304	≥53 (520)		≥21 (205)				1010℃-1150℃ Water Quenching
	SUS 304L	≥49 (480)		≥18 (175)
	SUS 316	≥53 (520)		≥21 (205)
	SUS 316L	≥49 (480)		≥18 (175)
GB	06Cr19Ni10	≥53 (520)		≥21 (205)				1010℃-1150℃ Water Quenching
	022Cr19Ni10	≥49 (480)		≥18 (180)
	06Cr17Ni12Mo2	≥53 (520)		≥21 (205)
	022Cr17Ni12Mo2	≥49 (480)		≥18 (180)
EN	1.4301	(500-700)		≥20 (195)		≥40		1000℃-1100℃ Water Quenching
	1.4307	(470-670)		≥18 (180)
	1.4401	(510-710)		≥21 (205)				1020℃-1120℃ Water Quenching
	1.4404	(490-690)		≥19 (195)
