Mass Transfer Efficiency Plastic Tellerette Rosette Ring Transparent Or Customized Color

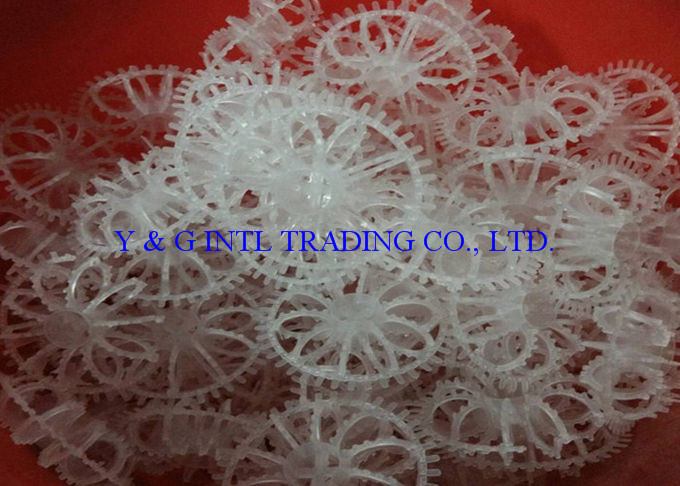

Plastic Tellerette Rosette Ring is also named Teller Ring or Rosette Ring which is made up of twelve radial arranged small rings. It is also an economical and versatile industry standard with well known performance characteristics.
Materials: polyethlene(PE), polypropylene(PP), reinforced polypropylene(RPP), polyvinyl chloride(PVC), chlorinated polyvinyl chloride(CPVC) and polyvinylidene fluoride(PVDF) based on different application requirements.
Technical Parameter of Plastic Tellerette Rosette Ring:
| Dia | High(mm) | Thick Number | Number per m3 | Surface Area (m2/m3) | Void Rate (m3/m3) | Bulk Density (Kg/M3) |
| 1”(25mm) | 9 | 1.5*2 | 175000 | 269 | 0.86 | 128 |
| 1.85”(47mm) | 19 | 3*3 | 32500 | 185 | 0.88 | 111 |
| 2”(51mm) | 19 | 3*3 | 25000 | 180 | 0.89 | 103 |
| 2.3”(59mm) | 19 | 3*3 | 17500 | 150 | 0.89 | 102 |
| 3”(73mm) | 27.5 | 3*4 | 8000 | 127 | 0.89 | 102 |
| 4”(95mm) | 37 | 3*6 | 3600 | 94 | 0.90 | 88 |
| 6”(145mm) | 48 | 3*6 | 1100 | 65 | 0.95 | 47 |
Advantages:
Large volid space and fluid capacity, high mass transfer efficiency;
Lower pressure, energy, mass transfer efficiency;
Chemical corrosion resistance, uniform gas-liquid contact.
Application:
1. SO2,SO3,NH3 absorber and scrubber
2. Used in chemical industry, like H2S, HCL, CL2, HF, NOX elimination, orange solvents recovery
3. Used in soda industry, chlorine drying tower
4. Used in oxygen plant, air cooling, gas cooling tower and used in thermal power, flue gas desulfurization
5. Sewage treatment, deodorization
